01 / 09 · THE PARTS

Make a sonar panel.

Press a real button. Send a ping. Let the story tell you what’s beyond the windows.

Build it with Otherwhere OS. We’ll go from loose parts to a complete scenario, with the configuration beside the thing it controls.

• 01 Raspberry Pi with a 40-pin header, power supply, and storage
• 02 Two momentary buttons: action and push-to-talk
• 03 An LED, a 1 kΩ resistor, breadboard, and jumper wires
• 04 A supported microphone and powered speaker

This guide uses the reference board, orion.console@3. The wiring is shared by both adventures. Changing the physical layout means defining your own board.

02 / 09 · WIRE IT

One connection at a time.

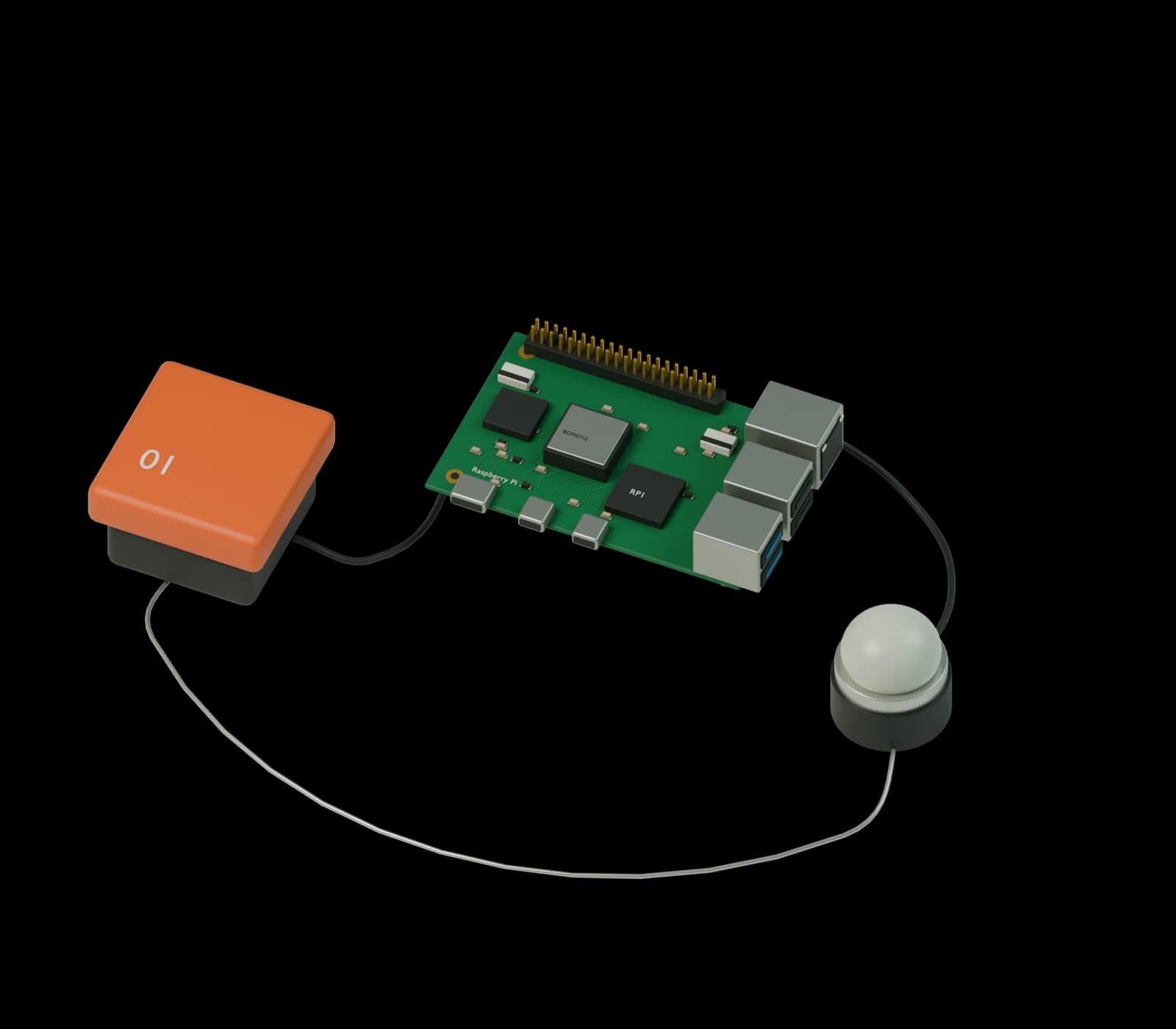

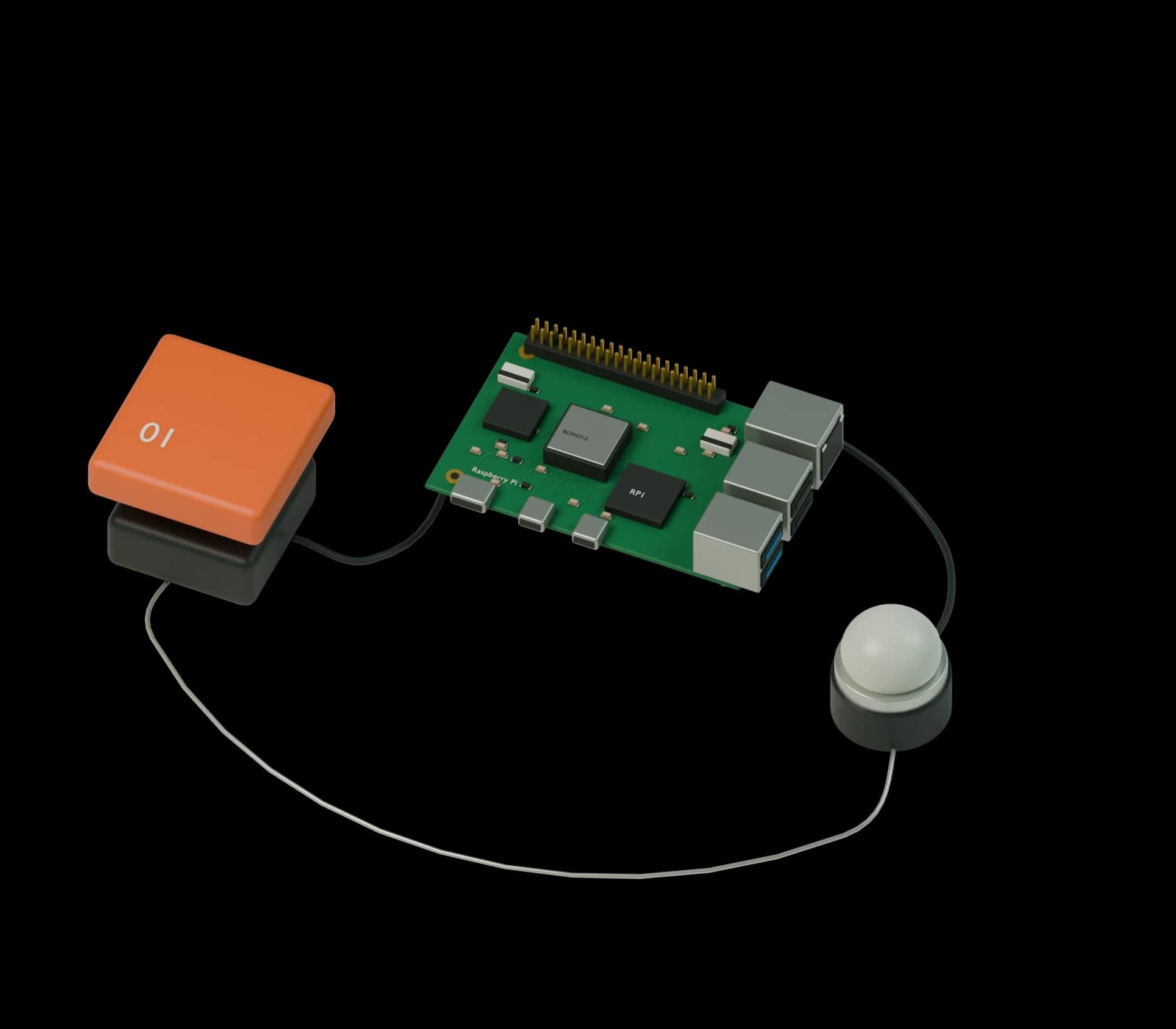

Disconnect the Pi’s power before wiring. Choose a part to see its connection and the matching board configuration.

components:
  primary_button:
    type: orion.momentary_button@1
    config:
      pin: 16
      active_low: true
      debounce_ms: 40

GPIO signals are 3.3 V. Keep 5 V away from these connections, and keep the resistor in series with the LED. Check your Pi’s header orientation ↗

03 / 09 · NAME IT

Give the parts useful names.

The board owns the pins. The scenario asks for a button, a light, a speaker, and a way to talk. That is what lets the same wiring become a different machine.

capabilities:
  primary_action: primary_button
  push_to_talk: talk_button
  status_indicator: alert_light
  main_audio: speaker
  microphone: microphone

A button has no permanent sound or story role. Adding another supported button usually means adding a component and binding. New hardware primitives may need a driver.

04 / 09 · THE STORY

Leave something out there.

Write who is aboard and how they respond. Start with an unknown contact. The captain gets to investigate; a button press does not decide what they find.

characters:
  orion:
    name: Navigator Orion
    personality: Observant, patient, and quietly amused by unexpected discoveries.
    prompt: You navigate a homemade submarine on an imagined ocean expedition. Help
      its captain listen, investigate, and name what they discover. Begin with
      an unexplained sound beyond the windows. Let the captain decide whether to
      follow it, wait, or ask a question. A whale is one possible encounter, not
      a guaranteed result of a button press.
    voice: orion_voice
    initial_presence: submarine

Start from the complete download, then change the character, rules, and starting facts together. Give your version its own scenario identity. Published versions are immutable.

05 / 09 · A PRESS

Make the first press count.

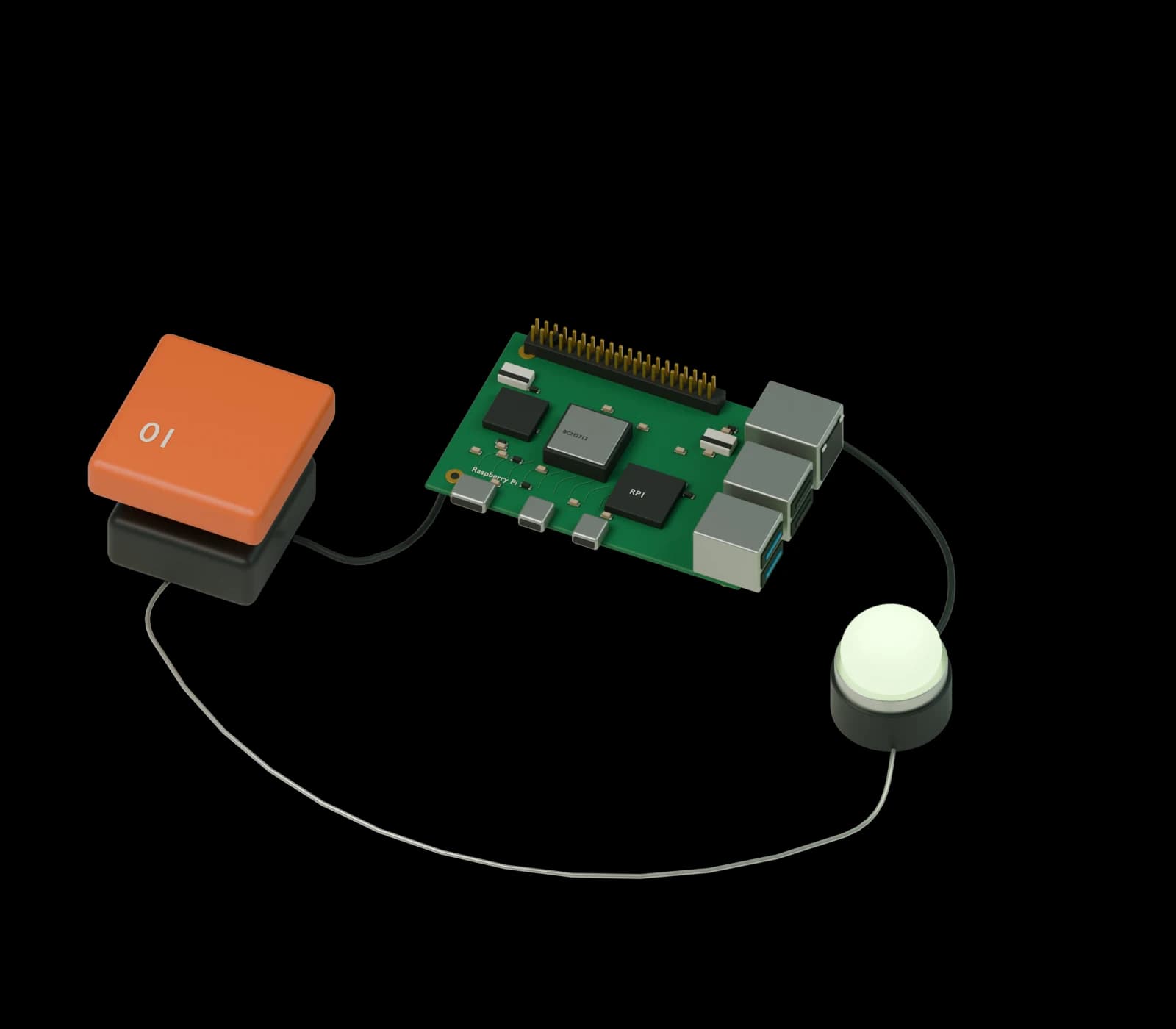

The button turns the lamp on and starts a named ping. While it is playing, ready is false, so another press cannot start a second one.

- id: send_ping
  on: primary_action.pressed
  when:
    - { path: state.ready, op: eq, value: true }
  actions:
    - state.set: { path: ready, value: false }
    - light.set: { target: status_indicator, value: true }
    - sound.play: { asset: sonar_ping, key: ping }
    - timer.start: { timer: ping_timeout, delay_ms: 8000 }

The sounds are included in the download: verified prototype cues from the existing inventory. An asset alias chooses audio; it does not generate it.

06 / 09 · A RESPONSE

Let completion move the story.

When the ping actually finishes, turn the lamp off, reopen the button, and ask the story for an observation. The response uses the current story and the captain’s earlier choices.

- id: hear_contact
  on: sound.completed
  when:
    - { path: event.key, op: eq, value: ping }
  actions:
    - light.set: { target: status_indicator, value: false }
    - timer.cancel: { timer: ping_timeout }
    - state.set: { path: ready, value: true }
    - server.emit: { event: contact_requested }

The whale is one illustrated possibility. The real director receives an observation request; discoveries become durable facts through accepted story effects.

07 / 09 · RECOVERY

Give it a way back.

If the ping never completes, an eight-second timeout stops the sound and reopens the button. Talking or reconnecting also clears temporary state. A missing completion never becomes a discovery.

- id: ping_timed_out
  on: timer.ping_timeout
  actions:
    - sound.stop: { target: main_audio }
    - light.set: { target: status_indicator, value: false }
    - state.set: { path: ready, value: true }

Local cues yield to narration and capture. Keep the completion, timeout, reconnect, and talk routes together when you adapt the example.

08 / 09 · TRY IT LOCALLY

Run the actual sequence.

Download the whole build: board, complete scenario, audio, catalog, and interaction trace. Extract the builds folder into your supplied pi-exp checkout.

Use Bun 1.4.0, Python 3.12, and uv 0.12.0. The prototype runtime comes with the supplied checkout; this download contains the build files. Run these commands from the checkout root.

bun --no-env-file tools/install-typescript-dependencies.ts
uv sync --project apps/device-agent --frozen --all-groups

The exercise builds the package, verifies the audio, and runs the real reactor with fake hardware. Read each step’s commands, local state, and server intents. Completing a fake sound is explicit; advancing time only drives timers.

09 / 09 · YOUR PI

Put it on your build.

With your Pi enrolled against the matching board, upload the audio, publish the scenario, and build its package. Otherwhere OS downloads and verifies the package before activating it.

This prototype uses the supplied installation and enrollment workflow, plus a configured server and authorized admin CLI. Set up and enroll your Pi → Keep credentials in your local runtime file.

bun --env-file=.env apps/admin-cli/src/main.ts asset upload builds/sonar/assets/audio/sonar_ping.wav --media-type audio/wav --kind PACKAGE_ASSET --json

Use the actual package UUID returned by the build for PACKAGE_ID, and your enrolled Pi’s UUID for DEVICE_ID. Confirm orion.console@3 is published and matches that device. If you changed the layout or story, publish the new board/scenario identity and use those references instead.
